STAY & EARTH WIRES

Stay wires, also known as Guy wires and HTGS (High Tensile Galvanised Steel) wires are high-strength, galvanised steel wires that provide structural support to towers, poles, and transmission lines. They withstand heavy static and dynamic loads, such as structural loads, wind and ice. Earth wires, made of cold-drawn, galvanised steel, offer exceptional tensile strength and durability for high load-bearing applications. While both are essential for infrastructure safety and reliability, they differ in their manufacturing process. Stay wires are typically stranded, offering flexibility, while earth wires undergo a cold-drawing process, which enhances their strength.

FEATURES

Material

Stay & Earth Wires are made from premium steel wire rods and are hot dip galvanised with zinc.

Standards

Stay & Earth Wires conform to IS 2141, ASTM A475, IS12776

Tensile Strength

Tensile strength of Stay & Earth Wires range between 500-1400 MPa

Strand configuration

Stay & Earth Wires are available in strand configuration of 7,19 and 37

Wire Diameter Range

Wire diameter of Stay & Earth Wires ranges between 1.60-4.55mm

Packaging

Stay and earth wires are available in coils and drums

APPLICATIONS

Structural Support

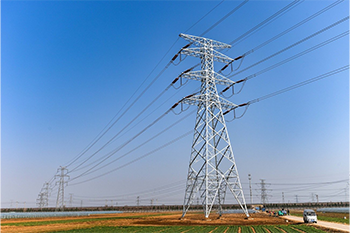

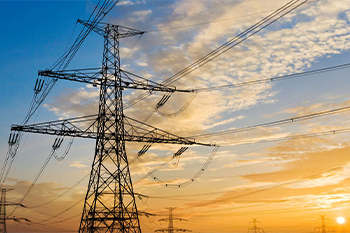

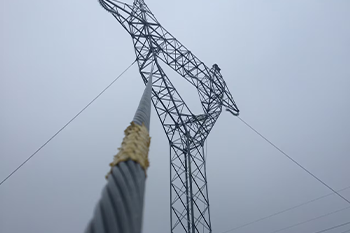

Stay and HTGS wires provide crucial structural support to structures. They are used to anchor communication towers, support power transmission lines, reinforce bridges, and stabilise building facades.

Earthing and Grounding Systems

HTGS wires are essential for earthing and grounding systems. They provide a safe path for electrical current, protecting equipment and personnel. They are used in power substations, industrial facilities, and residential/commercial buildings.

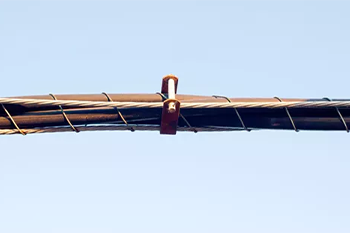

Cable Tensioning

Stay and HTGS wires are used to tension cables. They maintain optimal tension in cable cars and suspension bridges.

QUALITY ASSURANCE

At every stage of production, we prioritise quality to deliver products and services that meet or exceed industry standards. Our commitment to quality assurance includes-:

Raw Material Inspection

Raw materials are thoroughly inspected to ensure quality is maintained.

In-Process Testing

Regular testing during the manufacturing process to verify adherence to specifications.

Final Inspection

Comprehensive quality checks on finished products, including dimensions, surface finish, and mechanical properties.

Certifications

Our products are certified in terms of quality and performance.

AFTER-SALE SERVICES

We are committed towards providing dedicated customer support at every stage of the purchase journey

Accountability

We assume full responsibility for any quality deficiencies and commit to prompt resolution.

'

Customer Support

Our dedicated support team is available to address any inquiries or concerns.

Choose Nirmal Stay & Earth Wires for your diverse needs, knowing that it is a reliable, versatile, and performance-driven solution. With a commitment to quality, precision manufacturing, and comprehensive after-sale support, Nirmal Stay & Earth Wires will meet and exceed your expectations in a wide range of applications.
